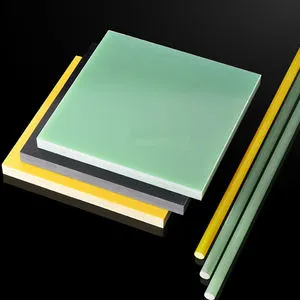

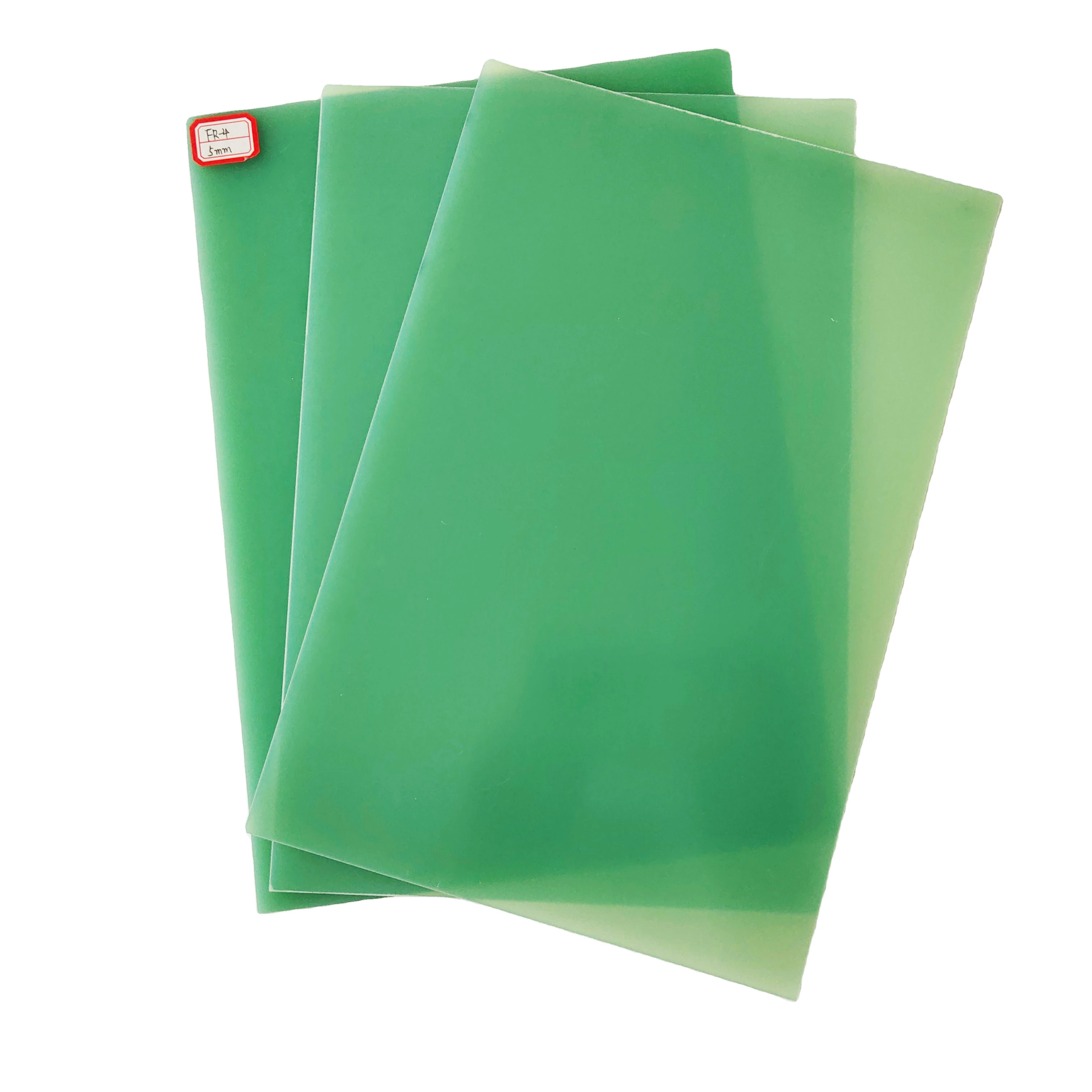

Mechanical and Electrical Properties of FR4 Epoxy Fiberglass Laminate Sheets

FR4 epoxy fiberglass laminate sheets are ubiquitous in the electronics industry, serving as the backbone for printed circuit boards (PCBs) and various insulating applications. These versatile materials boast a unique combination of mechanical strength and electrical insulation properties, making them indispensable in modern electronic manufacturing. By comprehending the intricate balance between their mechanical robustness and electrical characteristics, engineers and designers can optimize their use in diverse applications, from consumer electronics to aerospace technology. This article delves into the fundamental properties that make FR4 laminates a preferred choice, exploring their composition, manufacturing process, and the science behind their exceptional performance in demanding electronic environments.

Composition and Manufacturing of FR4 Epoxy Fiberglass Laminate Sheets

Raw Materials and Their Roles

FR4 epoxy fiberglass laminate sheets are composite materials engineered to provide optimal performance in electronic applications. The primary components include:

- Fiberglass cloth: Serves as the reinforcement, providing mechanical strength and dimensional stability.

- Epoxy resin: Acts as the binding matrix, offering excellent electrical insulation and chemical resistance.

- Flame retardants: Enhance the material's fire-resistant properties, crucial for safety in electronic devices.

The careful selection and proportion of these materials contribute significantly to the final properties of the FR4 laminate.

Manufacturing Process

The production of FR4 epoxy fiberglass laminate sheets involves several key steps:

- Impregnation: Fiberglass cloth is thoroughly saturated with liquid epoxy resin, ensuring even distribution for strong bonding.

- B-staging: The impregnated cloth undergoes partial curing, creating a semi-solid state that can be handled for further processing.

- Layering: Multiple layers of prepreg are carefully aligned and stacked, ensuring uniform thickness for structural integrity.

- Lamination: Heat and pressure are applied to fully cure the epoxy resin, solidifying the layers into a strong, durable laminate.

- Finishing: The laminated sheets are trimmed to size and treated on the surface for smoothness or additional functionality.

This precise manufacturing process ensures consistency in the material's properties across batches.

Grade Classifications

FR4 laminates are available in various grades, each tailored for specific applications:

- Standard FR4: Commonly used for general-purpose PCBs, offering good balance of performance and cost.

- High-Tg FR4: Designed for higher thermal resistance, ideal for applications exposed to elevated temperatures.

- Halogen-free FR4: A more eco-friendly alternative, minimizing environmental impact with reduced toxic emissions.

- Low-loss FR4: Specifically designed to minimize signal loss, making it perfect for high-frequency and RF applications.

Understanding these classifications helps in selecting the most appropriate FR4 variant for a given application.

Mechanical Properties of FR4 Epoxy Fiberglass Laminate Sheets

Tensile Strength and Modulus

FR4 epoxy fiberglass laminate sheets exhibit impressive tensile properties:

- Tensile Strength: With a range of 280 to 340 MPa, FR4 laminates can endure substantial stretching forces without breaking.

- Young's Modulus: Values between 17 and 24 GPa indicate the material's stiffness, ensuring stability under mechanical stress.

These properties ensure that FR4 laminates can withstand significant mechanical stresses during manufacturing and operation of electronic devices.

Flexural Strength and Rigidity

The flexural characteristics of FR4 epoxy fiberglass laminate sheet contribute to their structural integrity:

- Flexural Strength: Typically ranging from 340 to 560 MPa, FR4 laminates resist bending forces, maintaining structural integrity.

- Flexural Modulus: With values between 18 and 26 GPa, FR4 laminates are stiff, preventing deformation under applied stress.

These properties allow FR4 sheets to resist bending and maintain their shape under load, crucial for maintaining the integrity of electronic assemblies.

Impact Resistance and Toughness

FR4 laminates demonstrate good impact resistance and toughness:

- Izod Impact Strength: Ranging from 530 to 800 J/m, FR4 laminates absorb impact energy, reducing the risk of damage from shocks.

- Fracture Toughness (KIC): With values between 0.6 and 1.0 MPa·m1/2, FR4 laminates resist crack propagation, ensuring durability under stress.

These characteristics help protect electronic components from mechanical shocks and vibrations, enhancing the reliability of devices.

Electrical Properties of FR4 Epoxy Fiberglass Laminate Sheets

Dielectric Strength and Breakdown Voltage

FR4 laminates offer excellent electrical insulation properties:

- Dielectric strength typically exceeds 20 kV/mm.

- Breakdown voltage depends on thickness but is generally high, ensuring reliable insulation.

These properties are crucial for preventing electrical arcing and short circuits in PCBs and other electronic applications.

Dielectric Constant and Loss Tangent

The dielectric characteristics of FR4 epoxy fiberglass laminate sheet influence signal transmission:

- Dielectric constant (εr) typically ranges from 4.2 to 4.8 at 1 MHz.

- Loss tangent (tan δ) is usually between 0.014 and 0.020 at 1 MHz.

These properties affect signal propagation speed and energy dissipation in high-frequency applications.

Volume and Surface Resistivity

FR4 laminates exhibit high electrical resistance:

- Volume resistivity exceeds 109 Ω·cm.

- Surface resistivity is typically greater than 106 Ω.

These characteristics ensure minimal current leakage and maintain signal integrity in electronic circuits.

Conclusion

FR4 epoxy fiberglass laminate sheets stand as a testament to the synergy between mechanical and electrical engineering in materials science. Their balanced combination of strength, rigidity, and excellent insulation properties makes them an ideal substrate for a wide range of electronic applications. As technology continues to advance, understanding and optimizing these properties will remain crucial for pushing the boundaries of electronic design and performance. The versatility and reliability of FR4 laminates ensure their continued relevance in the ever-evolving landscape of electronics manufacturing.
