Is 3026 Phenolic Laminated Cotton Sheet Suitable for Electrical Insulation?

3026 phenolic laminated cotton sheet is indeed highly suitable for electrical insulation applications. This versatile material combines the strength of phenolic resin with the insulating properties of cotton fabric, creating a robust and reliable insulation solution. The phenolic cotton fabric laminate sheet excels in various electrical environments due to its excellent dielectric strength, low moisture absorption, and high temperature resistance. These properties make the 3026 phenolic cotton sheet an ideal choice for transformers, switchgear, and other electrical equipment where consistent insulation performance is crucial. Its durability and stability under various operating conditions further enhance its suitability for long-term electrical insulation applications across diverse industries.

Composition and Properties of 3026 Phenolic Laminated Cotton Sheet

Chemical Composition and Manufacturing Process

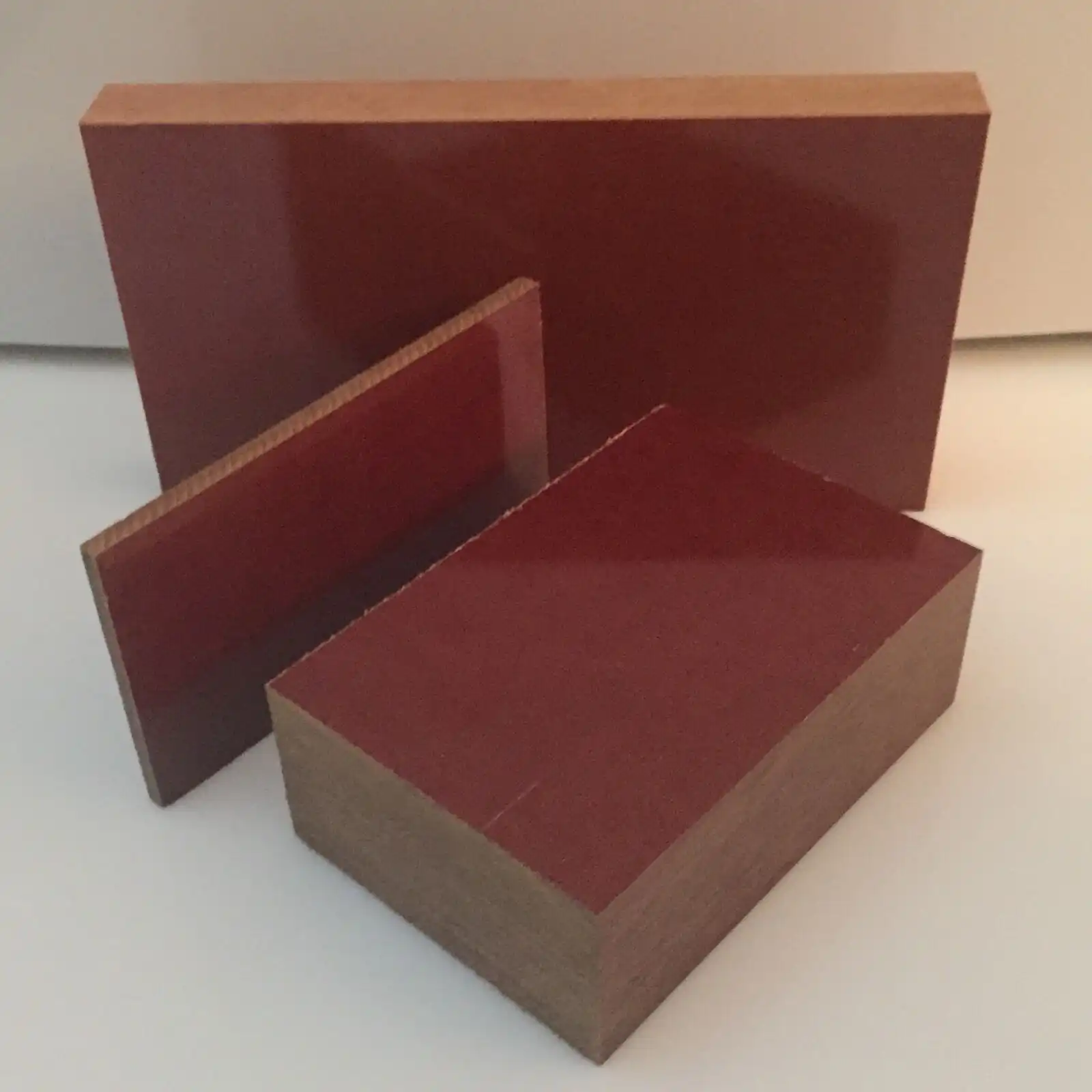

The 3026 phenolic laminated cotton sheet is a durable composite material created by impregnating cotton fabric with phenolic resin, then laminating and curing it under high pressure and temperature. This advanced manufacturing process results in a dense, uniform material that offers exceptional electrical insulation, mechanical strength, and heat resistance. Widely used in electrical and industrial applications, the 3026 sheet provides reliable performance in environments that demand both high durability and electrical stability.

Key Physical Properties

The phenolic cotton fabric laminate sheet is highly valued for its impressive physical properties, which make it an ideal choice for electrical insulation. It features outstanding tensile strength, ensuring resilience under stress, and excellent dimensional stability, which helps maintain its shape and performance over time. With low thermal expansion, the material can withstand temperature fluctuations without deforming. Additionally, it offers exceptional resistance to chemicals, oils, and solvents, making it a durable and reliable option in demanding industrial and electrical applications.

Electrical Characteristics

The 3026 phenolic cotton sheet is renowned for its exceptional electrical properties, making it an ideal material for insulation in high-voltage applications. It boasts a high dielectric strength, ensuring it can withstand significant electrical stress without breaking down. Its low dielectric loss minimizes energy dissipation, improving the overall efficiency of electrical systems. Additionally, the sheet's excellent arc resistance enhances its reliability and durability, providing long-lasting performance in demanding environments where electrical integrity is crucial.

Applications of 3026 Phenolic Laminated Cotton Sheet in Electrical Insulation

Power Distribution and Transmission

In the realm of power distribution and transmission, the phenolic cotton fabric laminate sheet plays a crucial role. It is commonly used in transformers, switchgear, and circuit breakers, where its high dielectric strength and thermal stability are essential for maintaining safe and efficient operations. The material's ability to withstand high temperatures and electrical stress makes it ideal for these demanding applications.

Industrial Machinery and Equipment

The 3026 phenolic laminated cotton sheet finds extensive use in industrial machinery and equipment. It serves as an effective insulator in electric motors, generators, and control panels. The material's resistance to oil and chemicals makes it particularly suitable for harsh industrial environments where exposure to such substances is common.

Consumer Electronics and Appliances

In the consumer electronics sector, the 3026 phenolic cotton sheet is utilized for insulating various components in appliances and devices. Its excellent dimensional stability and ease of machining allow for precise fabrication of insulating parts. From household appliances to sophisticated electronic equipment, this material ensures reliable electrical insulation and contributes to the safety and longevity of consumer products.

Advantages and Limitations of Using 3026 Phenolic Laminated Cotton Sheet for Electrical Insulation

Advantages in Electrical Applicationscc

The phenolic cotton fabric laminate sheet offers numerous advantages in electrical insulation applications. Its high dielectric strength provides excellent protection against electrical breakdown, while its low moisture absorption ensures consistent performance in varying humidity conditions. The material's flame-retardant properties enhance safety in electrical systems, and its ability to maintain its insulating properties at elevated temperatures makes it suitable for a wide range of operating conditions.

Durability and Long-term Performance

One of the key strengths of the 3026 phenolic cotton sheet is its exceptional durability. The material exhibits minimal degradation over time, even when exposed to challenging environmental factors. This longevity translates to reduced maintenance requirements and improved reliability of electrical systems. The sheet's resistance to thermal aging and electrical stress further contributes to its long-term performance, making it a cost-effective choice for electrical insulation.

Limitations and Considerations

While the 3026 phenolic laminated cotton sheet excels in many aspects, it's important to consider its limitations. The material can be brittle and may chip or crack if subjected to excessive mechanical stress. Additionally, its machinability, while generally good, may require specialized tools and techniques for precise fabrication. In applications involving extreme temperatures or highly corrosive environments, alternative materials might be more suitable. It's crucial to evaluate these factors in the context of specific application requirements to ensure optimal performance and longevity.

Conclusion

The 3026 phenolic laminated cotton sheet stands out as a highly suitable material for electrical insulation across various applications. Its unique combination of electrical, mechanical, and thermal properties makes it an excellent choice for power distribution equipment, industrial machinery, and consumer electronics. While considering its limitations, the advantages of using this material in electrical insulation far outweigh the drawbacks for most applications. As technology advances, the role of phenolic cotton fabric laminate sheet in ensuring safe and efficient electrical systems remains significant, solidifying its position as a valuable insulation solution.

Contact Us

For more information about our 3026 phenolic laminated cotton sheet and other insulating materials, please don't hesitate to contact us at info@jhd-material.com. Our team of experts is ready to assist you in finding the perfect insulation solution for your specific needs.
