How to Test the Quality of 3240 Epoxy Phenolic Glass Cloth Laminated Sheet?

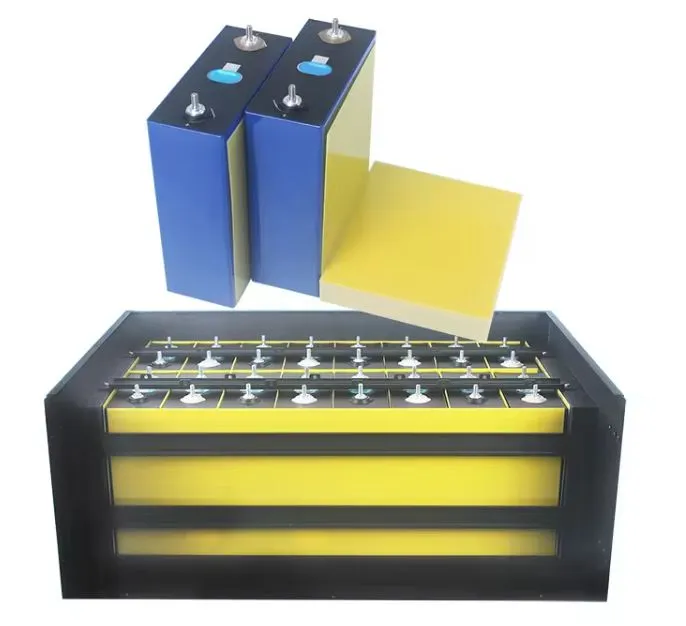

Testing the quality of 3240 epoxy phenolic glass cloth laminated sheet involves a comprehensive approach that evaluates various properties. To ensure the sheet meets industry standards and your specific requirements, you should conduct several tests. These include physical tests like dimensional stability and surface finish, mechanical tests such as tensile strength and flexural properties, and electrical tests like dielectric strength and insulation resistance. Additionally, thermal tests to assess heat resistance and chemical tests to determine resistance to various substances are crucial. By performing these tests, you can accurately assess the quality and performance of the 3240 epoxy phenolic glass cloth laminated sheet, ensuring it meets the necessary standards for your application.

Physical Properties Testing

Dimensional Stability Assessment

Dimensional stability is a critical aspect of 3240 epoxy phenolic glass cloth laminated sheet quality. This property ensures that the material maintains its shape and size under varying environmental conditions. To assess dimensional stability, manufacturers typically subject the laminated sheet to cyclic temperature and humidity changes. The sheet's dimensions are measured before and after exposure to these conditions, with any changes in length, width, or thickness carefully documented. A high-quality 3240 epoxy phenolic glass cloth laminated sheet should exhibit minimal dimensional changes, typically less than 0.1% in any direction.

Surface Finish Evaluation

The surface finish of 3240 epoxy phenolic glass cloth laminated sheet plays a significant role in its performance and appearance. A smooth, uniform surface is essential for many applications, particularly in electrical insulation where surface irregularities can lead to electrical discharges. To evaluate surface finish, technicians use profilometers or optical measurement systems to quantify surface roughness. Parameters such as Ra (average roughness) and Rz (maximum height of the profile) are commonly used to characterize surface quality. A high-quality sheet should have low Ra and Rz values, typically in the range of 0.2-0.8 μm for Ra.

Density and Specific Gravity Testing

Density and specific gravity are important physical properties that can indicate the quality and consistency of 3240 epoxy phenolic glass cloth laminated sheet. These properties are determined using precision weighing and volume displacement methods. The density should be uniform across the sheet and consistent between production batches. Typical density values for high-quality 3240 epoxy phenolic glass cloth laminated sheets range from 1.7 to 1.9 g/cm³. Variations in density can indicate issues with resin content, glass cloth distribution, or curing processes, potentially affecting the sheet's mechanical and electrical properties.

Mechanical Properties Evaluation

Tensile Strength Testing

Tensile strength is a fundamental mechanical property that indicates the 3240 epoxy phenolic glass cloth laminated sheet's ability to withstand longitudinal stress without failure. This test is conducted using a universal testing machine, where a sample of the sheet is subjected to increasing tensile load until it fractures. The maximum stress the material can withstand before failure is recorded as its tensile strength. High-quality 3240 epoxy phenolic glass cloth laminated sheets typically exhibit tensile strengths ranging from 300 to 400 MPa, depending on the specific grade and thickness. Additionally, the elongation at break is measured, providing insight into the material's ductility and toughness.

Flexural Properties Assessment

Flexural properties, including flexural strength and modulus, are crucial for applications where the 3240 epoxy phenolic glass cloth laminated sheet may experience bending forces. The three-point bending test is commonly used to evaluate these properties. In this test, a rectangular sample is supported at two points and loaded at its center until failure occurs. The flexural strength represents the maximum stress the material can withstand before yielding in a flexure test. High-quality sheets typically demonstrate flexural strengths between 400 and 500 MPa. The flexural modulus, which indicates the material's resistance to bending deformation, is also calculated from the test data and should be in the range of 20-25 GPa for premium grades.

Impact Resistance Evaluation

Impact resistance is a critical property for 3240 epoxy phenolic glass cloth laminated sheets used in applications where sudden loads or impacts may occur. The Izod or Charpy impact test methods are commonly employed to assess this property. In these tests, a notched or unnotched specimen is struck by a pendulum, and the energy absorbed during fracture is measured. The impact strength is typically reported in units of kJ/m². High-quality 3240 epoxy phenolic glass cloth laminated sheets should exhibit impact strengths ranging from 40 to 60 kJ/m² for notched specimens and higher values for unnotched specimens. This property is particularly important for ensuring the material's durability and resistance to sudden mechanical stresses.

Electrical and Thermal Properties Testing

Dielectric Strength Measurement

Dielectric strength is a crucial electrical property of 3240 epoxy phenolic glass cloth laminated sheet, indicating its ability to withstand high voltage without electrical breakdown. This property is tested by applying an increasing voltage across the thickness of a sample until electrical breakdown occurs. The voltage at which breakdown occurs, divided by the sample thickness, gives the dielectric strength in units of kV/mm. High-quality 3240 epoxy phenolic glass cloth laminated sheets typically exhibit dielectric strengths ranging from 20 to 25 kV/mm. Factors such as temperature, humidity, and frequency can affect dielectric strength, so these conditions are carefully controlled during testing to ensure accurate and reproducible results.

Insulation Resistance Testing

Insulation resistance is another critical electrical property that measures the 3240 epoxy phenolic glass cloth laminated sheet's ability to resist current flow under an applied voltage. This test involves applying a DC voltage (typically 500V) across the sample and measuring the resulting current. The insulation resistance is then calculated using Ohm's law. High-quality sheets should exhibit insulation resistance values greater than 1 x 10^12 ohms. This property is particularly important for applications where the material is used as an electrical insulator. Insulation resistance can be affected by environmental factors such as temperature and humidity, so these conditions are carefully controlled during testing.

Thermal Conductivity Assessment

Thermal conductivity is a key property for applications where heat dissipation is important. This property is typically measured using the guarded hot plate method or laser flash analysis. The thermal conductivity of 3240 epoxy phenolic glass cloth laminated sheet is relatively low, typically ranging from 0.3 to 0.5 W/(m·K), which makes it an excellent thermal insulator. However, in some applications, a balance between electrical insulation and thermal conductivity is required. In such cases, manufacturers may modify the composition to achieve specific thermal conductivity values. The consistency of thermal conductivity across the sheet and between production batches is also an important quality indicator.

Conclusion

Testing the quality of 3240 epoxy phenolic glass cloth laminated sheet is a multifaceted process that requires a comprehensive approach. By evaluating physical, mechanical, electrical, and thermal properties, manufacturers and end-users can ensure the material meets the required standards and performs optimally in its intended application. Regular and thorough testing not only guarantees product quality but also contributes to continuous improvement in manufacturing processes. As technology advances, new testing methods may emerge, further enhancing our ability to assess and ensure the quality of these essential materials.
