How is Glass Epoxy Sheet Different from FR4?

Glass epoxy sheet and FR4 are both popular materials used in electrical and electronic applications, but they have distinct differences. Glass epoxy sheet is a composite material made of woven fiberglass cloth impregnated with epoxy resin, offering superior mechanical strength and electrical insulation properties. FR4, on the other hand, is a specific grade of glass epoxy laminate that meets flame retardant standards. While glass epoxy sheet provides excellent thermal and chemical resistance, FR4 is specifically engineered for enhanced fire resistance. The main difference lies in their composition and intended use, with glass epoxy sheet being more versatile and FR4 being tailored for applications requiring strict flame retardant properties.

Composition and Manufacturing Process

Raw Materials Used in Glass Epoxy Sheet and FR4

Glass epoxy sheet and FR4 share similar base materials but differ in their precise composition. Both utilize fiberglass cloth as reinforcement, providing strength and dimensional stability. The epoxy resin used in glass epoxy sheets can vary in formulation, allowing for customization of properties. FR4, however, employs a specific type of epoxy resin that incorporates flame-retardant additives, typically bromine compounds.

Production Techniques for Glass Epoxy Sheet

The manufacturing process for glass epoxy sheet involves impregnating fiberglass cloth with liquid epoxy resin. This resin-saturated material undergoes a controlled curing process, often using heat and pressure. The result is a homogeneous composite with excellent mechanical and electrical properties. Manufacturers can adjust the resin-to-glass ratio and curing conditions to tailor the sheet's characteristics for specific applications.

FR4 Manufacturing Specifications

FR4 production adheres to strict guidelines to ensure consistent flame-retardant properties. The process involves precise control of the epoxy resin formulation, incorporating specific flame-retardant additives. The lamination process for FR4 often includes multiple layers of resin-impregnated glass cloth, pressed and cured under carefully regulated conditions. This results in a material that meets or exceeds industry standards for flame resistance while maintaining excellent electrical and mechanical properties.

Physical and Chemical Properties

Mechanical Strength Comparison

Glass epoxy sheet and FR4 exhibit different mechanical properties due to their composition and manufacturing processes. Glass epoxy sheets generally offer higher flexural and tensile strength, making them suitable for applications requiring robust structural integrity. The versatility in resin formulation allows for customization of mechanical properties to meet specific requirements. FR4, while also strong, may have slightly lower mechanical strength due to the inclusion of flame-retardant additives. However, it still provides excellent rigidity and dimensional stability, crucial for printed circuit board applications.

Thermal Characteristics and Heat Resistance

Both materials demonstrate good thermal properties, but glass epoxy sheet often outperforms FR4 in terms of heat resistance. The thermal conductivity of glass epoxy sheet can be adjusted through resin formulation, allowing for better heat dissipation in certain applications. FR4, while having good thermal properties, is primarily designed to maintain its integrity during exposure to flame or high heat, rather than for optimal heat dissipation. The glass transition temperature (Tg) of glass epoxy sheet can be higher than that of standard FR4, providing better dimensional stability at elevated temperatures.

Chemical Resistance and Durability

Glass epoxy sheet typically exhibits superior chemical resistance compared to FR4. The epoxy resin used in glass epoxy sheets can be formulated to withstand a wide range of chemicals, including acids, alkalis, and organic solvents. This makes it suitable for harsh environmental conditions and applications involving exposure to corrosive substances. FR4, while also resistant to many chemicals, may be more susceptible to degradation from certain solvents due to its specific flame-retardant formulation. The durability of both materials is excellent, but glass epoxy sheet often offers longer service life in challenging environments.

Applications and Industry Usage

Electrical and Electronic Applications

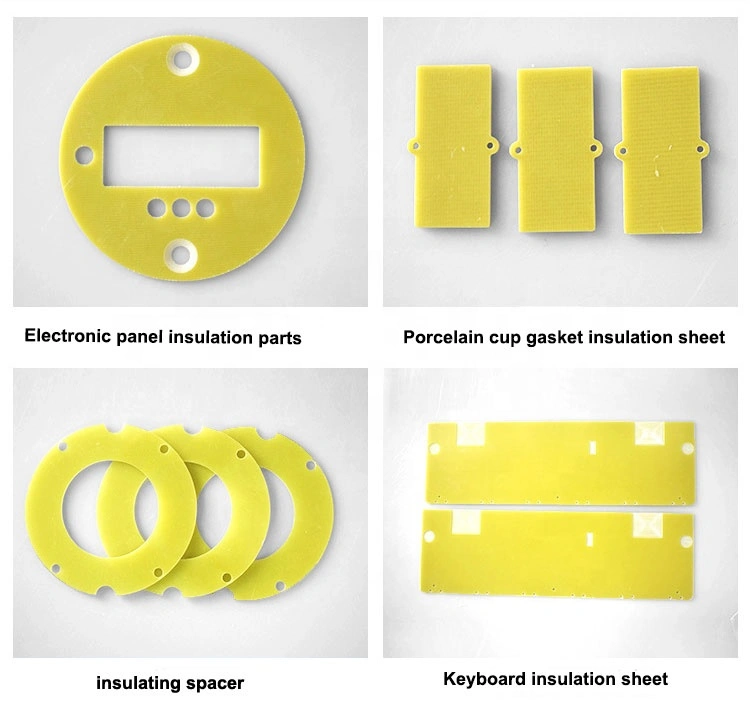

Glass epoxy sheet finds extensive use in electrical insulation applications due to its excellent dielectric properties and customizable characteristics. It serves as a crucial component in high-voltage equipment, transformers, and switchgear. The material's ability to maintain its insulating properties under various environmental conditions makes it indispensable in the power generation and distribution sectors. FR4, primarily known for its use in printed circuit boards (PCBs), dominates the electronics industry. Its consistent electrical properties, coupled with flame-retardant capabilities, make it the standard choice for multilayer PCBs in consumer electronics, telecommunications equipment, and industrial control systems.

Mechanical and Structural Uses

The versatility of glass epoxy sheet extends to mechanical and structural applications. Its high strength-to-weight ratio makes it an excellent choice for aerospace components, such as interior panels and structural elements in aircraft. The material's corrosion resistance and dimensional stability also make it suitable for marine applications, including boat hulls and deck components. In contrast, FR4's use in mechanical applications is limited. While it provides good structural support in PCBs, its primary function remains in the realm of electronics rather than load-bearing or high-stress mechanical applications.

Specialized Industry Requirements

Certain industries have specific requirements that differentiate the use of glass epoxy sheet and FR4. The automotive sector, for instance, increasingly utilizes glass epoxy composites in body panels and structural components due to their light weight and high strength. The material's customizable properties allow for optimization in terms of impact resistance and thermal management. FR4, while present in automotive electronics, is confined to circuit board applications. In the renewable energy sector, glass epoxy sheet is favored for wind turbine blades, capitalizing on its fatigue resistance and ability to be molded into complex shapes. FR4's role in this sector is primarily in the control systems and power electronics of renewable energy installations.

Conclusion

Glass epoxy sheet and FR4, while sharing some similarities, cater to different needs in various industries. Glass epoxy sheet offers greater versatility, customizable properties, and superior mechanical strength, making it ideal for a wide range of electrical, mechanical, and structural applications. FR4, with its specific flame-retardant properties, remains the go-to material for printed circuit boards and electronics. Understanding these differences is crucial for engineers and designers in selecting the most appropriate material for their specific requirements, ensuring optimal performance and safety in diverse applications.
