How FR4 Epoxy Fiberglass Laminate Sheets Enhance the Reliability of Electronic Devices?

FR4 epoxy fiberglass laminate sheets play a pivotal role in enhancing the reliability of electronic devices. These versatile materials provide exceptional mechanical strength, excellent electrical insulation properties, and remarkable thermal resistance. By incorporating FR4 laminates into electronic circuit boards, manufacturers can significantly improve device durability, longevity, and performance. The unique composition of epoxy resin and woven glass fabric creates a robust substrate that withstands environmental stressors, prevents electrical breakdowns, and maintains structural integrity under varying temperatures. This combination of features ensures that electronic devices operate consistently and reliably across a wide range of applications, from consumer electronics to aerospace technology.

The Composition and Properties of FR4 Epoxy Fiberglass Laminate Sheets

Chemical Composition and Manufacturing Process

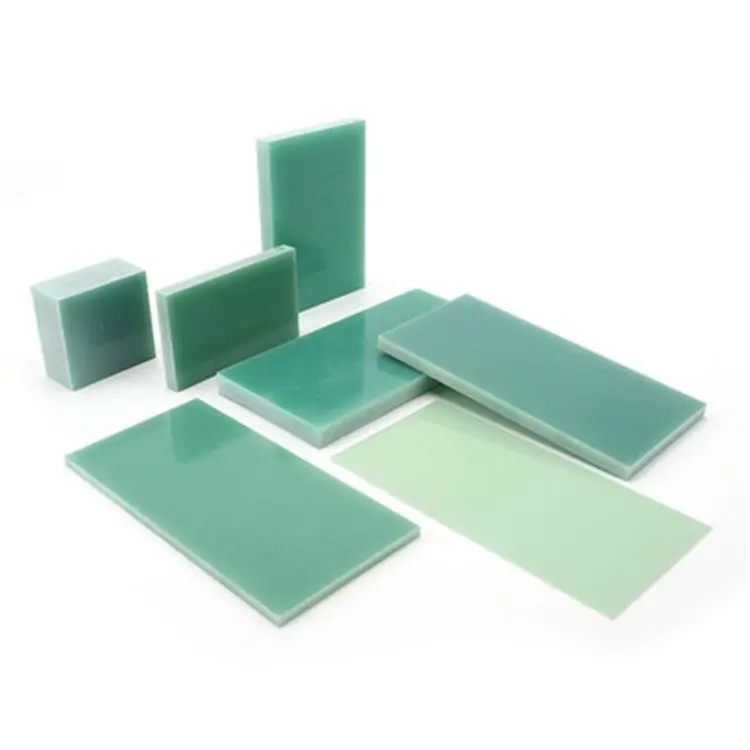

FR4 epoxy fiberglass laminate sheets are composed of a carefully engineered blend of materials. The base substrate consists of woven glass fabric, which provides structural support and dimensional stability. This fabric is impregnated with epoxy resin, a thermosetting polymer known for its exceptional adhesive properties and resistance to chemical and environmental factors. The manufacturing process involves layering multiple sheets of resin-impregnated glass fabric and subjecting them to high pressure and heat. This curing process results in a homogeneous, solid material with superior mechanical and electrical characteristics.

Mechanical Properties and Strength

The mechanical properties of FR4 epoxy fiberglass laminate sheets are remarkable, contributing significantly to the reliability of electronic devices. These laminates exhibit high flexural strength, allowing them to resist bending and warping under stress. Their tensile strength ensures they can withstand substantial pulling forces without deformation or failure. Additionally, FR4 laminates possess excellent dimensional stability, maintaining their shape and size even under varying environmental conditions. This stability is crucial for preserving the integrity of circuit traces and component connections in electronic assemblies.

Electrical Insulation and Dielectric Properties

One of the primary reasons FR4 epoxy fiberglass laminate sheets are widely used in electronics is their superior electrical insulation capabilities. These materials have a high dielectric strength, meaning they can withstand substantial voltage differentials without breakdown. The dielectric constant of FR4 laminates is relatively low, which is advantageous for high-frequency applications as it minimizes signal loss and crosstalk between adjacent traces. Furthermore, FR4 sheets exhibit low dissipation factors, reducing energy loss in the form of heat during electrical transmission. These properties collectively ensure that electronic devices operate efficiently and reliably across various voltage and frequency ranges.

Thermal Management and Fire Resistance in Electronic Devices

Heat Dissipation and Thermal Conductivity

Effective thermal management is crucial for the longevity and performance of electronic devices. FR4 epoxy fiberglass laminate sheets contribute to this aspect by offering a balance between thermal insulation and heat dissipation. While not as thermally conductive as some metallic materials, FR4 laminates provide sufficient thermal conductivity to help distribute heat away from critical components. This property is particularly beneficial in multilayer circuit boards, where heat generated by components can be efficiently spread across the board's layers, preventing localized hot spots that could compromise device reliability.

Flame Retardant Properties and Safety Standards

The "FR" in FR4 stands for "Flame Retardant," highlighting one of the material's most important safety features. FR4 epoxy fiberglass laminate sheets are engineered to resist ignition and slow the spread of flames in the event of a fire. This characteristic is achieved through the incorporation of flame-retardant additives in the epoxy resin. The flame-retardant properties of FR4 laminates comply with stringent safety standards, such as UL94 V-0, ensuring that electronic devices meet regulatory requirements for fire safety. This inherent fire resistance enhances the overall reliability and safety of electronic devices, particularly in applications where fire hazards pose significant risks.

Temperature Resistance and Thermal Expansion

Electronic devices often operate in environments with fluctuating temperatures. FR4 epoxy fiberglass laminate sheets excel in maintaining their properties across a wide temperature range. These materials have a high glass transition temperature (Tg), typically around 130-140°C for standard FR4 grades, allowing them to retain their mechanical and electrical properties even at elevated temperatures. Additionally, FR4 laminates have a low coefficient of thermal expansion (CTE), which means they expand and contract minimally with temperature changes. This thermal stability is crucial for preventing stress on solder joints and maintaining the integrity of circuit connections, thereby enhancing the long-term reliability of electronic devices.

Applications and Advancements in FR4 Technology

Versatility in Electronic Manufacturing

FR4 epoxy fiberglass laminate sheets find applications across a broad spectrum of electronic devices due to their versatility. They serve as the backbone for printed circuit boards (PCBs) in consumer electronics, telecommunications equipment, automotive systems, and industrial control panels. The material's adaptability allows for the creation of both single-layer and complex multilayer boards, accommodating the increasing density and complexity of modern electronic designs. FR4 laminates can be easily drilled, routed, and plated, facilitating the integration of various components and connectors. This versatility in manufacturing processes contributes significantly to the reliability and functionality of diverse electronic devices.

High-Frequency and High-Speed Applications

As electronic devices evolve to operate at higher frequencies and data rates, FR4 epoxy fiberglass laminate sheets have adapted to meet these demanding requirements. Advanced formulations of FR4 laminates offer improved signal integrity and lower dielectric losses at high frequencies. These enhanced materials maintain consistent electrical properties across a wide frequency range, making them suitable for applications in 5G telecommunications, high-speed computing, and radar systems. The ability of FR4 laminates to support high-frequency operations without compromising reliability has been crucial in the development of cutting-edge electronic devices that push the boundaries of performance.

Environmental Considerations and Sustainability

The electronics industry is increasingly focusing on sustainability and environmental responsibility. FR4 epoxy fiberglass laminate sheets are evolving to meet these new challenges. Manufacturers are developing halogen-free FR4 formulations that maintain excellent flame-retardant properties without using environmentally harmful substances. These eco-friendly variants comply with RoHS (Restriction of Hazardous Substances) regulations while preserving the reliability-enhancing characteristics of traditional FR4 laminates. Furthermore, research is ongoing to improve the recyclability and end-of-life management of FR4 materials, aiming to reduce the environmental impact of electronic waste. These advancements in FR4 technology not only enhance the reliability of electronic devices but also contribute to their long-term sustainability.

Conclusion

FR4 epoxy fiberglass laminate sheets are indispensable in enhancing the reliability of electronic devices. Their unique combination of mechanical strength, electrical insulation, thermal management, and fire resistance properties makes them ideal for a wide range of applications. As technology advances, FR4 materials continue to evolve, meeting the demands of high-frequency operations and addressing environmental concerns. The versatility and adaptability of FR4 laminates ensure their continued relevance in the ever-changing landscape of electronic device manufacturing, solidifying their role as a cornerstone of reliable and high-performance electronics.
